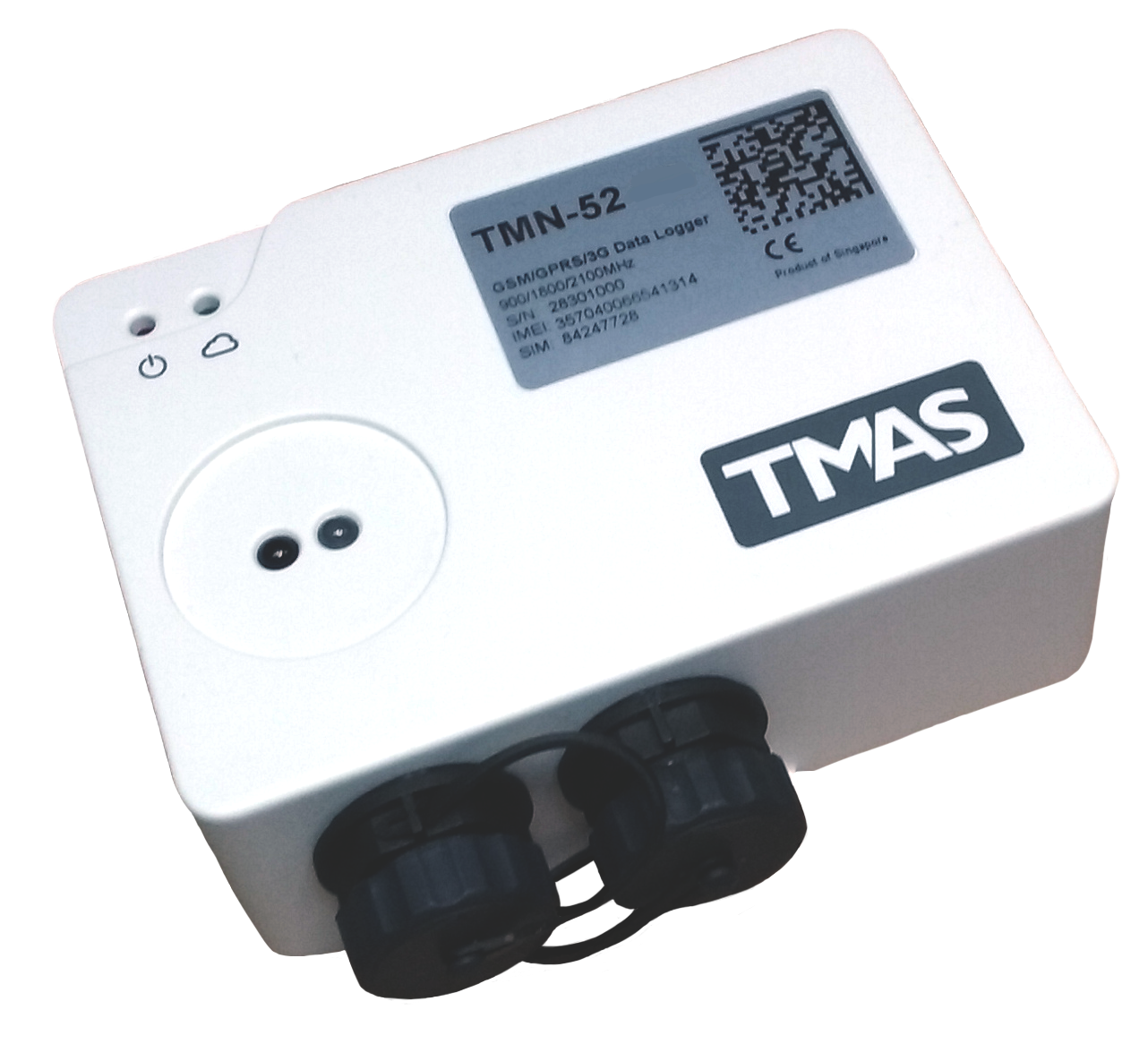

TMN-52 Battery Power Data Logger

TMN-52 is a long life battery powered data logger, work on low power WAN network such as RF Mesh, NB-IOT, LoRAWAN etc. It allow connections of many sensor types, with data logging and periodic reporting capabilities, to support many mission critical smart applications, such as Smart environmental monitoring, Smart sewer monitoring, Smart farming, Smart metering etc., target at utility provider, city developer and governmental agencies etc.

The logger is ported. It is intrinsically safe, water, dust and humidity proof, for installation in the hazardous, outdoor or harsh and enclosed environment. It can be maintenance free for many years.

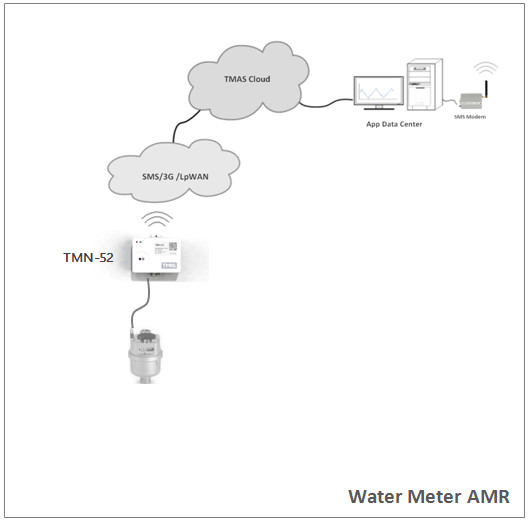

The logger accept wide range of sensors, e.g. dry contact, pulse count, 0-5V, 4-20mA SDI-12, I2C bus etc (model dependent) The sensor data are read and logged into the internal non-volatile memory at the pre-configured sampling rate. Upon scheduled submission, the device will push data to data center via WiSUN mesh network. Device allow alarm threshold setting for real time alarm reporting. The sampling and reporting interval are configurable. The periodic reporting will also serve the purpose of health reporting to data center. The device can be configured via a contactless IR optical probe, or wireless update via TMAS cloud.

Applications

Please visit Flood Monitoring for Utilities

Mechanical Dimension
