Modem Accessories

Product Highlights

 Euro Power Adapter (TMA-001a)
acc06
  • Standard 6W Switching Power Adapter.
  • Input: 100-240VAC.
  • Output: 12 V DC, 0.5A
  • DC Plug dimension: 2.1mm, Inner+ve.
  • Operating Temperature: 0-40 deg C.
  • CE Certified, European Version.

Modem Cable (DB9) Male – Female
acc07
  • Connecter #1: D-Sub 9 Pin Male Connector
  • Connecter #2: D-Sub 9 Pin Female Connector
  • Length: 1.3m
  • Cable Spec: UL2464 28AWG*9C+1+AL OD:5.0
  • Pinout: Standard 1:1 Pinout
  • Color: Black
  • Operating Temperature: -25 ~ +85 deg C

GSM Antenna (TMA-003a)
acc08
  • Quad Band GSM Antenna.
  • 824 – 960 Mhz, 1710 – 1990 Mhz
  • Gain: 2dBi; VSWR:<=2 to 2.5;
  • Norminal Impedance: 50 ohms.
  • Polarization: Vertical.
  • Max Power: 50W.
  • Mounting: Direct to Terminal.
  • Antenna Connector: SMA-Male.
  • Weight: 20grams.

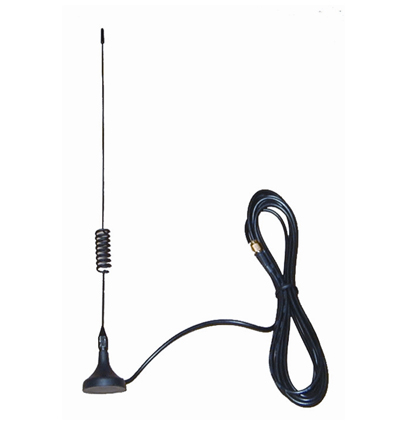

GSM Magnetic Antenna (TMA-003b)
acc09
  • Extendable Dual-Band GSM Antenna.
  • A:890~960Mhz; B:1710~1990Mhz.
  • Gain: 5dBi; VSWR:<=1.5;.
  • Norminal Impedance: 50 ohms.
  • Polarization: Vertical.
  • Max Power: 50W.
  • Mounting: Magnetic Base.
  • Antenna Connector: SMA-Male.
  • Cable Length: 3 meters.
  • Weight: 70grams.

GSM Antenna (TMA-003c)
acc10
  • Extendable Dual-Band GSM Antenna
  • A:890~960Mhz; B:1710~1990Mhz
  • Gain: 2dBi; VSWR: A:<=1.7; B:<=2.1
  • Norminal Impedance: 50 ohms
  • Polarization: Vertical or Horizontal
  • Max Power: 25W
  • Mounting: Adhensive Double Sided Tape
  • Antenna Connector: SMA-Male
  • Cable Length: 1.2 meters
  • Weight: 50grams

TMAS Telemetry Set (TMN-50T)
acc_TMN-50T
  • Terminal
  • Antenna
  • Adaptor
  • Programming Cable

TMAS Smart Gateway Set (T61)
acc_TMN-51TT61
  • Terminal
  • Antenna
  • Adaptor
  • Serial Cable

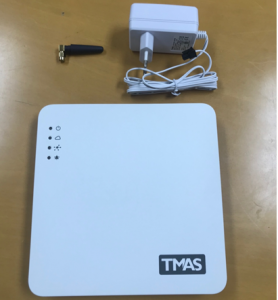

TMAS Smart IOT Gateway Set (T8000)
T8000 set
  • Terminal
  • Antenna
  • Adaptor
